CE Non Woven Fabric Making Machine , Alloy Steel Calender Machine Swimming Roller
1 Package
CE Non Woven Fabric Making Machine , Alloy Steel Calender Machine Swimming Roller
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: QiaoDe
Certification: CE, ISO 9001
Model Number: φ420,φ440
High Light:

CE Non Woven Fabric Making Machine


4500mm Non Woven Fabric Making Machine


Alloy Steel Calender Machine Swimming Roller

Payment & Shipping Terms
Packaging Details: Standard package
Delivery Time: 100 days
Payment Terms: L/C, T/T
Supply Ability: 20 Packages per year
Production Capacity: 20 Packages Per Year
Automatic Brand: Automatic
Brand Name: Qiaode
Certification: CE, ISO9001
After-sales Service: Free Spare Parts Video Technical Support, Online Support
Product Name: Hot S-Roll
Product Description

 Alloy Steel Calender Machine Swimming Roller


We are increasing thescale of trade and customers through out the world. With our good reputation we have won the trust of our customers. It’s helps the modernisation of our country and promote the economic and technical exchanges with the rest of the world. We also look forward to enhance the friendship with other countries and make positive impact.


Quick Detail:

  1. Production Capacity: 20 packages per year
  2. Automatic Brand: Automatic
  3. Brand name: Qiaode
  4. Certification: CE, ISO9001
  5. After-sales service: Free spare parts, Video technical support, Online support
  6. Warranty: 12 months
  7. Roller Diameter: φ420, φ440
  8. Working width: 2400,3000,3800,4500mm
  9. Place of Origin: Jiangsu, Province

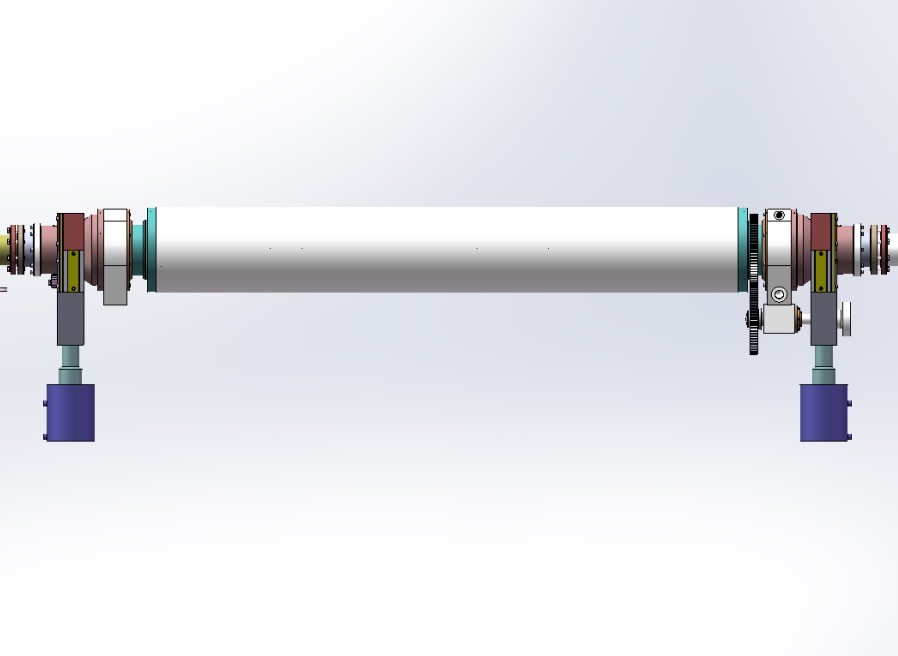

The Hot S-Roll is a deflection-controlled swimming roll. Thus, it nestles up to the steel or engraving roll and ensures uniform, continuously adjustable line forces across the roll width.


Calender Material High-quality alloy steel.
Heating Style Peripheral holes, the heating speed is fast and the surface temperature of roll is even.
Roll Diameter φ420, φ440
Maximum Mechanical Speed 800m/min




  • The calender is for the purpose to take the heat treatment on products. With a certain heating temperature and pressure, the thickness, appearance and some properties of products can be changed.
  • Health care: surgical gowns, protective clothing, masks, sanitary napkins, sanitary pads, etc.
  • Household products: Wallpaper, bed sheets, bedspreads, table cloths, shopping bags, bags,etc.
  • Industrial and agricultural: Nursery cloth, protective cloth, filtering material and reinforcement material.


Competitive Advantage:

  • The automatic center height compensation has the advantages of improving the physical properties of the products, broadening the scope of application of the products, and reducing the energy consumption of the equipment.
  • The roll is controlled by the difference of the heat transfer oil pressure to achieve different center height in order to meet distinct products’ requirements.
  • Hot S-roll realizes a large flow rate of the heat transfer oil, the runner section is equivalent to the roll surface, the heating is more uniform, the heat transfer efficiency is higher. The continuous high speed operation can also be realized.
  • Hot S-roll rotates with shaft sleeve, shaft stays immovable, so the required rotating torque is reduced, which reduces the motor power and reduces the production energy consumption.


After-sale service

  • The warranty of our machine is 12 months and service is available lifelong.
  • The cost caused by the seller’s expert in customer’s country (including shuttle trip ticket between China and the Buyer’s, inland traffic, medical fees, lodging, dinner and so on) will be covered by the buyer.
  • Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible.
  • We can send enough technicians to the Buyer’s company for installation and testing the machines.
  • We supplies the complete technical documents and the relative drawings of the electric components which were written in Chinese and English.
  • We can provide you some easily broken spare parts.
