550×3700 Nonwoven Fabric Calender Roller Machine
One set
MOQ
Negotiable price
Price
550×3700  Nonwoven Fabric Calender Roller Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: Qiaode
Certification: CE, ISO9001
Model Number: φ550×3700
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 300 Sets per year
Specifications
Calender Material: High-quality Alloy Steel
Heating Style: Peripheral Holes, The Heating Speed Is Fast And The Surface Temperature Of Roll Is Even.
Roll Diameter: Φ550
Working Width: 3700mm
Mechanical Speed: 150m/min
Calender Maximum Line Pressure: 150kg/cm2
Color: Customization
Departure Port: Shanghai Port
Product Description

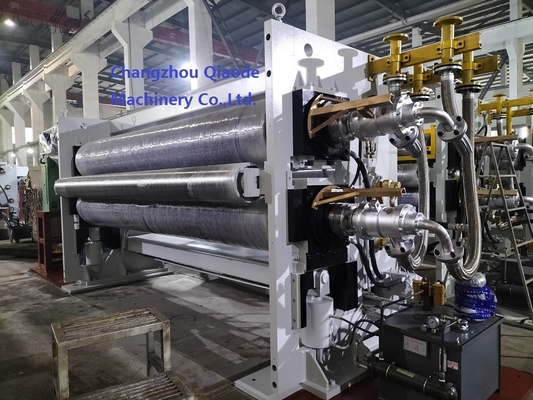

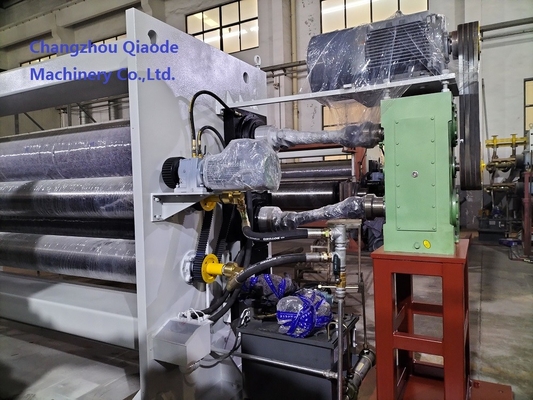

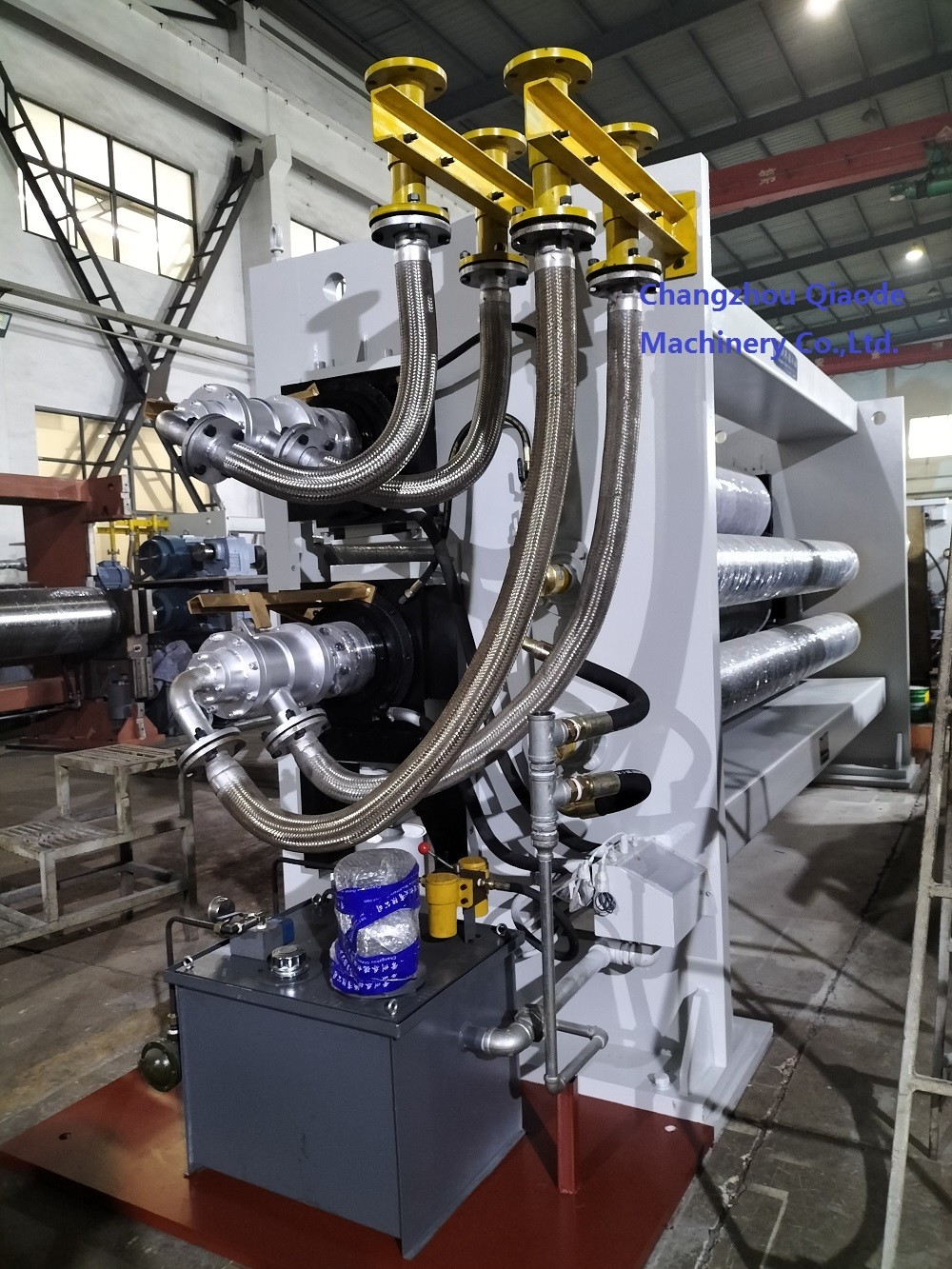

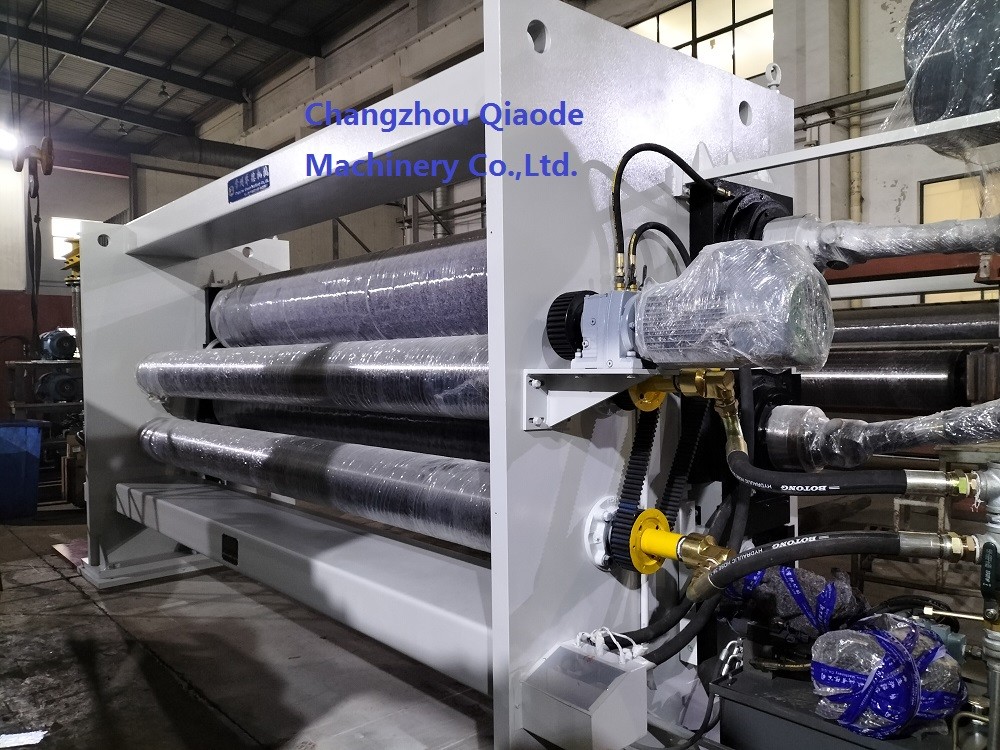

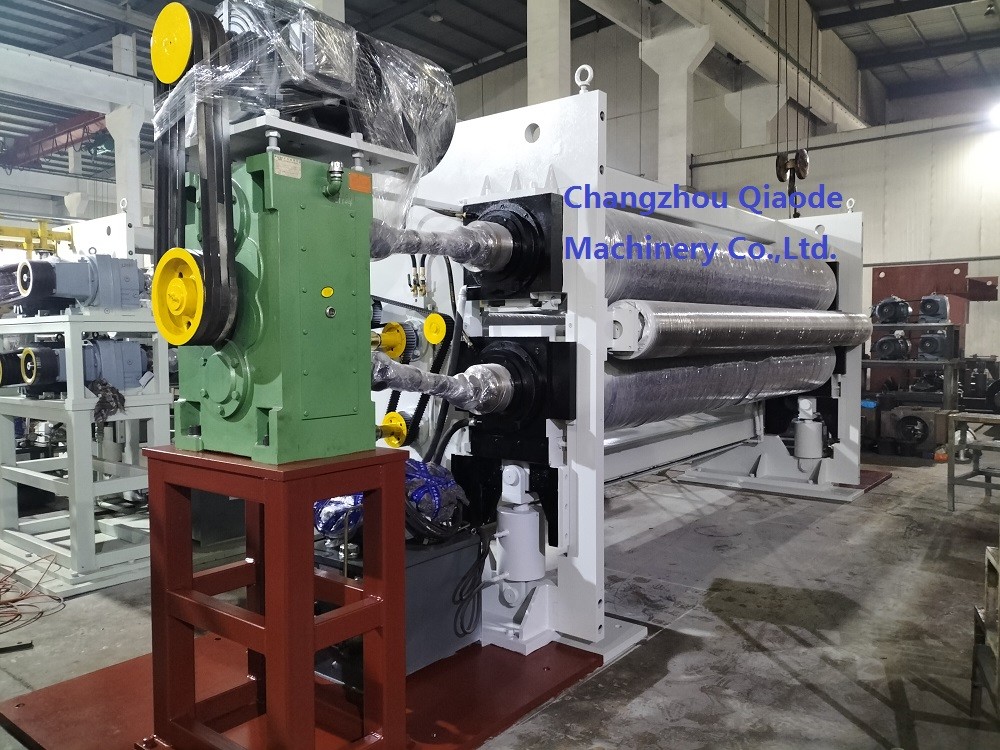

550×3700 Nonwoven Fabric Calender Roller Machine



The 550×3700 nonwoven fabric calender roller machine is for the purpose to take the heat treatment on products. With a certain heating temperature and pressure, the thickness, appearance and some properties of products can be changed.

  • Production Capacity: 100 sets per year
  • Brand name: Qiaode
  • Certification: CE, ISO9001
  • After-sales service: Free spare parts, Video technical support, Online support
  • Warranty: 12 months
  • Roller Diameter: φ550
  • working width: 3700mm
  • Place of Origin: Jiangsu, Province
  • Type: two rollers
  • Speed: 150-200m/min

Description:



Calender Material High-quality alloy steel.
Heating Style Peripheral holes, the heating speed is fast and the surface temperature of roll is even.
Roll Diameter Φ550
Working Width 3700mm
Mechanical Speed 150m/min(Max. 200m/min)
Calender Maximum Line Pressure 150kg/cm2
Calender Drive Style One Motor with one roller



Applications:

  1. With health care scope: surgical gowns, protective clothing, masks, sanitary napkins, sanitary pads, etc.
  2. With household products scope: Wallpaper, bed sheets, bedspreads, table cloths, shopping bags, bags,etc.
  3. With Industrial and agricultural scope: Nursery cloth, protective cloth, filtering material and reinforcement material.

Advantages of 550×3700 nonwoven fabric calender roller machine:

  • Our quality is better than other company.
  • Advanced technology
  • Best after-sale service

After-sale service

  • The warranty of our machine is 12 months and service is available lifelong.
  • The cost caused by the seller’s expert in customer’s country (including shuttle trip ticket between China and the Buyer’s, inland traffic, medical fees, lodging, dinner and so on) will be covered by the buyer.
  • Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible.
  • We can send enough technicians to the Buyer’s company for installation and testing the machines.
  • We supplies the complete technical documents and the relative drawings of the electric components which were written in Chinese and English.
  • We can provide you some easily broken spare parts.

Our Company



Qiaode Machiney has improved technology, and successfully certified with ISO9001 quality system certificate and CE certificate. Now we own total dozens of different kinds of products such as Y-type three-roller calender machine, Swimming Roller, two roller calender machine, slitting machine, auto fabric winder, web-forming machine,etc.



FAQ



1. Are you a factory or trading company?
Yes, we are a factory.



2. What is the MOQ?
One set.



3. what Is the production and delivery time?
90 working days.



4. What is your payment term?
We accept L/C, T/T.
